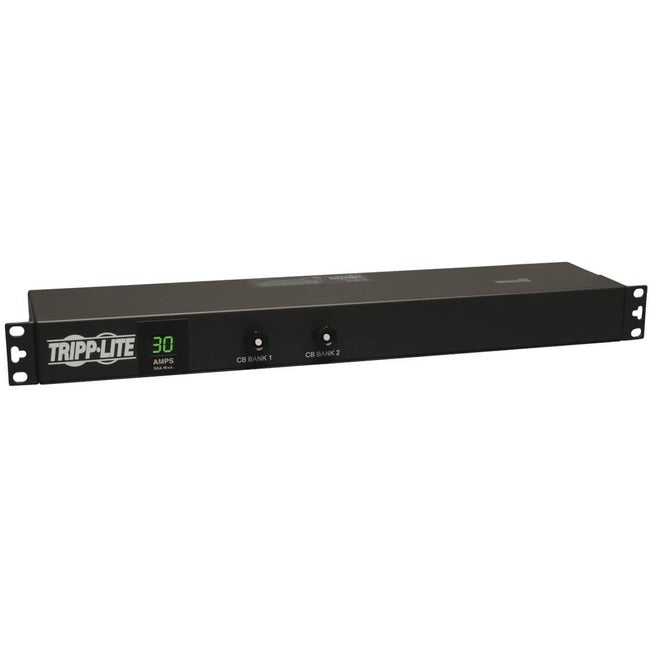

Tripp Lite PDU Metered 120V 30A 5-15-20R 12 Outlet L5-30P 1U RM

Tripp Lite's PDUMH30 AC power distribution unit offers a digital current monitor and provides 30 amps of 120 volt capacity in a versatile multi-mount cabinet (agency de-rated to 24A continuous). Detachable mounting flanges are configurable for wallmount, under-counter, or 1U/0U rackmount installation. Uses only 1U of rack space when installed in any 19-inch rack, with the potential for zero U mounting in the cable management area of most rack enclosures. Built-in digital ammeter display offers continuous visual input current monitoring data for the entire PDU. Attractive rackmount housing with 12 rear-facing outlets measures only 4.5 inches in depth. Output is arranged in two separately breakered 20A output loading banks. Unfiltered electrical pass-through without a power switch makes the PDUMH30 ideal for distributing UPS or generator power in rack enclosures, network closets, and more. Includes 12 rear-facing NEMA 5-15/20R outlets, 15-ft. AC power cord with L5-30P input plug. TVSS grounding lug and rugged all-metal rackmount case design.

  • 12 NEMA 5-15/20R outlets
  • Attached 15 ft. / 4.5m cord with NEMA L5-30P input plug
  • Metered single phase 30A 120V 1U horizontal rackmount PDU
  • Reversible housing, 6.5 in. / 16.5cm depth
  • Two-digit current meter reports total PDU input current in amps
